Wireless

Standards: Wi-Fi 4 (IEEE 802.11n/b/g 2.4 GHz)

WiFi Speeds: N300 (2.4 GHz: 300 Mbps)

WiFi Range: 2 Bedroom Houses

Antennas: 2× Fixed Antennas

WiFi Capacity: Legacy

Working Modes: Router Mode, Access Point Mode, Range Extender Mode, WISP Mode

Hardware

Processor: Single-Core CPU

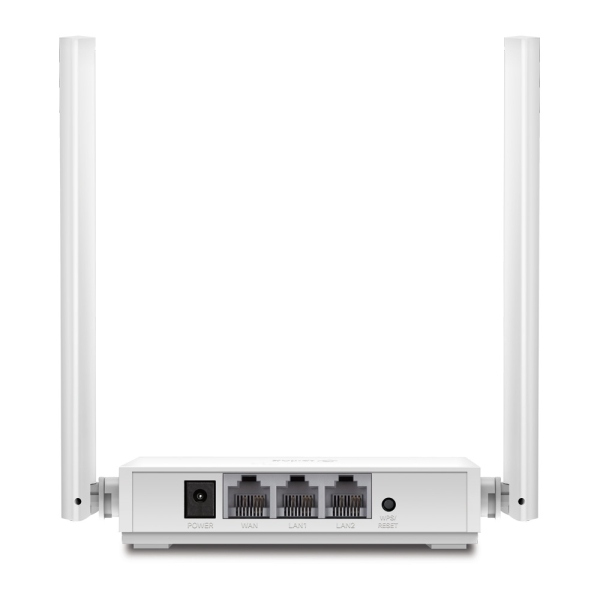

Ethernet Ports: 1× 10/100 Mbps WAN Port, 2× 10/100 Mbps LAN Ports

Buttons: Reset Button

Power: 5 V ⎓ 0.6 A

Security

WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

Guest Network: 1× 2.4 GHz Guest Network

Software

Protocols: IPv4, IPv6

Parental Controls: URL Filtering, Time Controls

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: NO-IP, DynDNS

Management: Tether App, Webpage

Other

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Certifications: FCC, CE, RoHS

Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Test Data

WiFi Transmission Power: CE: <20dBm(2.4GHz), FCC: <30dBm

WiFi Reception Sensitivity: 270M: -70dBm@10% PER, 130M: -74dBm@10% PER, 108M: -74dBm@10% PER, 54M: -77dBm@10% PER, 11M: -87dBm@8% PER, 6M: -90dBm@10% PER, 1M: -98dBm@8% PER

Physical

Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)

Package Contents: Wi-Fi Router TL-WR820N, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
